Description

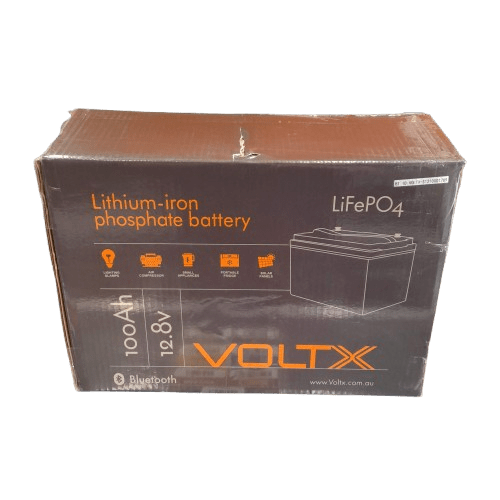

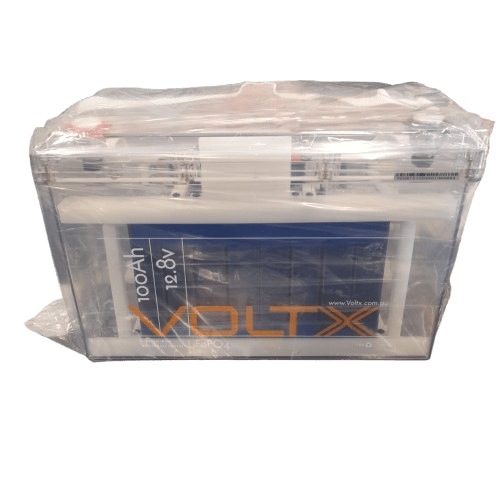

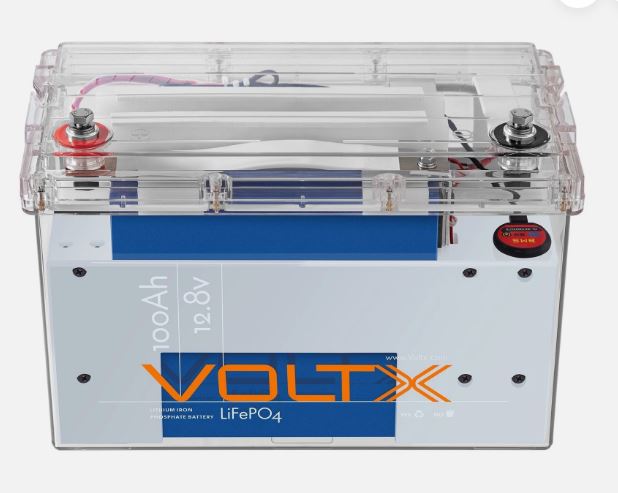

VOLTX BATTERY LIFEPO4 12.8V 100AH
| Brand | VoltX |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 100Ah |
| Charging Voltage: | 14.2-14.6v |
| Rated Energy: | 1280Wh |
| Standard Charging Current : | 20A |
| Max Charging Current: | 50A |
| Rated Discharge Current: | 100A |
| Max. Discharge Current: | 100A |
| Max. Discharge Current 5 sec: | 200A |
| Approx Life Cycles: | 4000 |
| C-rating: | 1C |
| Absorption Voltage: | 14.4V |
| Float Voltage: | 13.6V |
| Overcharge Protection: | 14.4V |
| Overcharge Recovery: | 14V |
| Overdischarge Protection: | 11.2V |
| Overdischarge Recovery: | 11.6V |
| Cell Grouping: | 4S1P |
| Working Temperature Range: | Charge: 0°C to 45°C Discharge: -25°C to 65°C |
| Storage Temperature: | -10℃ to 50℃ |
| Battery Cells: | Prismatic |
| Case Material: | ABS Plastic |
| Parallel Connection: | Yes, max 6 batteries |
| Series Connection: | Yes, max 6 batteries |
