Description

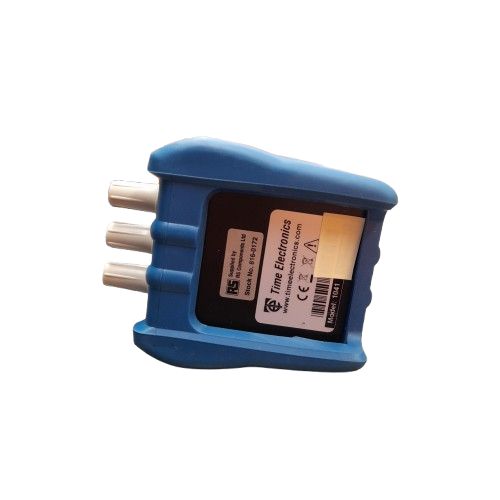

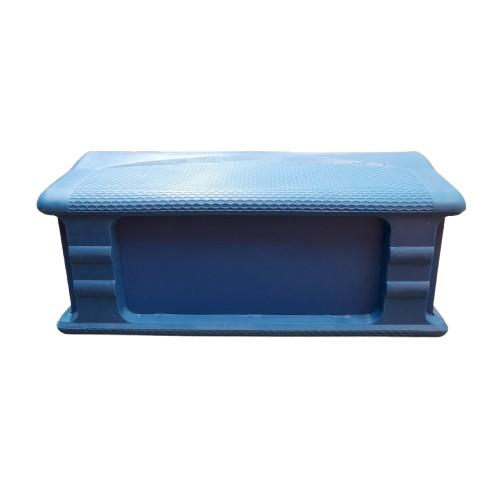

Time Electronics Resistance Decade Box

Time Electronic Resistance Decade Box

The Time Electronic resistance decade box is a compact, durable precision low ohm resistance decade box is designed for general laboratory work, including platinum resistance thermometry. Its excellent accuracy is achieved by using high stability metal film resistors. This decade box is housed in a robust metal case with a removable protective rubber cover. Its 5-digit thumbwheel switch enables simple and precise setting with an indication of the resistance value.

Features and Benefits

Resistance measurement ranges between 0.01ohm and 1kohm
Clear visual indication using colour-coded digits
High accuracy
High stability
Low temperature coefficient is 50ppm/°C
Suitable for PRT/RTD
Power rating is 1W per resistor
Residual resistance is less than 60mohm
Safety terminals (compatible with 4mm shrouded plugs, standard plugs, bare wires and spade terminals)
Voltage rating is maximum 100VDC/AC RMS
Width of 215mm, height of 100mm and diameter of 120mm

Applications

Industrial use
Laboratory work
