Description

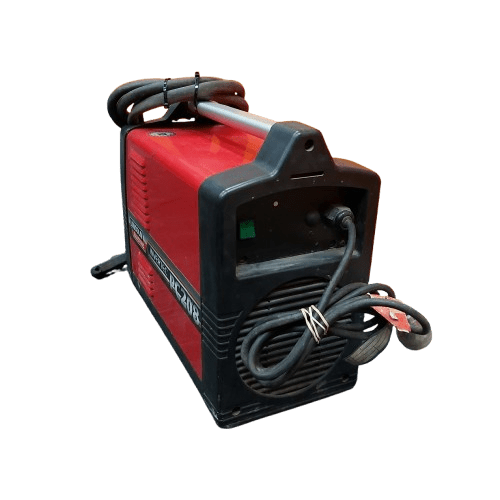

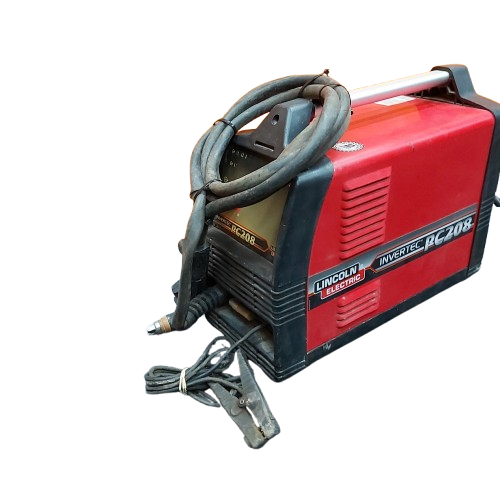

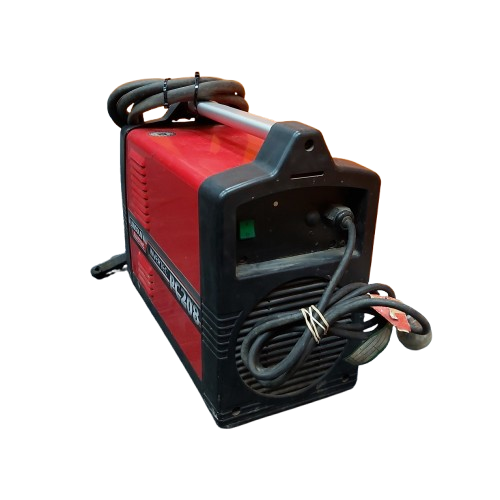

The Lincoln Electric PC208 plasma cutter is a portable, inverter-based unit designed for cutting sheet metal, with a focus on farm, HVAC, auto body, and fabrication work. It features a 20-amp output and a 115V input, and uses standard compressed air. The PC208 is known for its compact size, lightweight design, and ability to cut up to 1/4 inch material.
Key Specifications:
- Input Voltage: 115V.
- Output: 20 amps.
- Cutting Capacity: 1/4 inch (maximum).
- Air Requirements: 65 psi at 3.5 CFM.
- Weight: Approximately 21 lbs (9.5 kg).
- Features: Inverter design, fan-cooled unit, no high-frequency output, portable with saddle hooks for cable storage.
- Torch: Includes a cutting torch assembly with a 9.5-foot reach, a ground clamp, and an 8-foot power cord.
