Description
Douk Audio M1PRO Bluetooth 5.0 Digital Amplifier Receiver USB Player SUB Amp
Features
Using classic TDA7498E chip, max output power can reach 160W + 160W, equipped with high-quality 32V/5A power supply enough to drive above 300W passive speakers. It has a good match with outdoor/ bookshelf/ computer/ desktop /ceiling /floor standing speakers.
M1 PRO supports stereo RCA and Bluetooth 5.0 input, compatible with phones, computers, TVs, MP3 players, TV, Echo Dot, CD players etc. It is also a digital music player with U-disk input supporting MP3, WAV, APE, FLAC and WMA lossless formats.
A low frequency output is specially designed to connect active speakers and the bass effects can be strongly enhanced. The sound is more delicate with treble and bass control, the shocking auditory effects make you feel like in the cinema.
Reasonable circuit layout and concise wiring to ensure HiFi clear and clean sound, no audible noise even at high power output. High gain Bluetooth antenna design, can receive audio signals from greater distance, very practical and powerful.

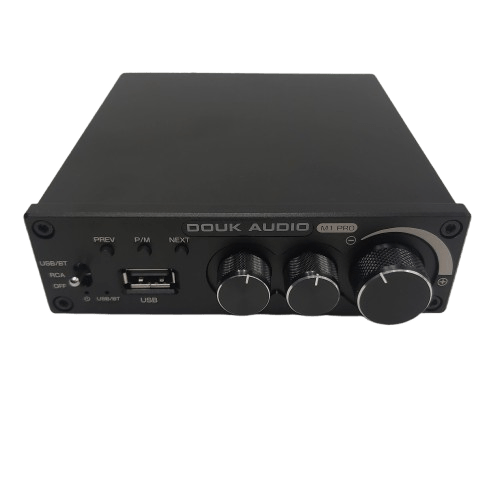

Mini size with exquisite appearance, aluminum alloy case and gold-plated terminals are fashionable and durable, with input switch and indicator, very suitable for home and desktop audio system use.
Parameters
Model: M1 PRO
Channel: 2.0
Audio input: Bluetooth/RCA/U-disk

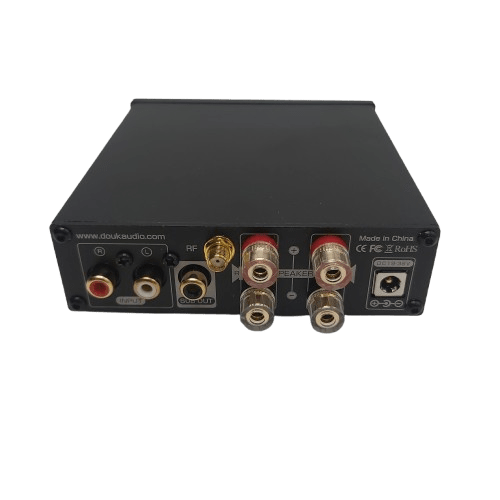

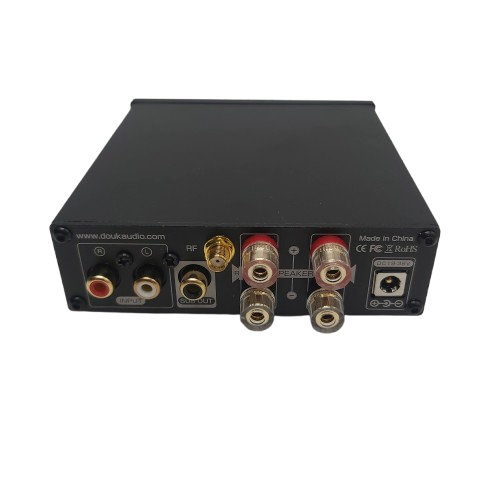

Audio output: banana speaker jacks / low frequency signal (connect active subwoofers)
Support format: MP3, WMA, APE, FLAC, WAV
U-disk capacity: max 32G
Bluetooth version: 5.0
Speaker impedance: 4-8Ω
Max output power: 160W * 2 (4Ω load)
SNR: ≥98dB
Input sensitivity: 0.775V
THD: 0.05%(1kHz 1W)
Frequency Response: 20Hz-20KHz(±3dB)
Working voltage: DC 19-35V
Color: Black
Dimensions(L*W*H): 128*117*35mm / 5.04*4.61*1.38in
Net weight: 512g / 1.13lb
Package weight: 1.13kg / 2.49lb

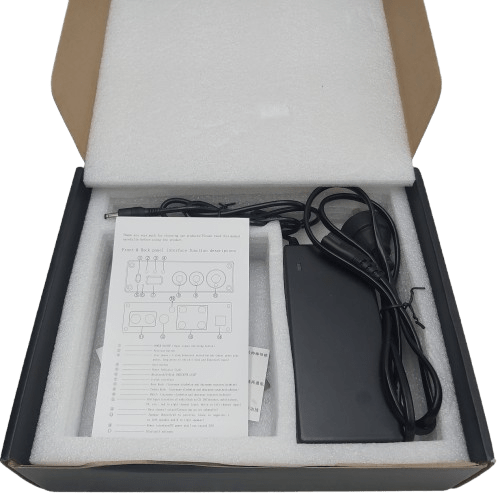

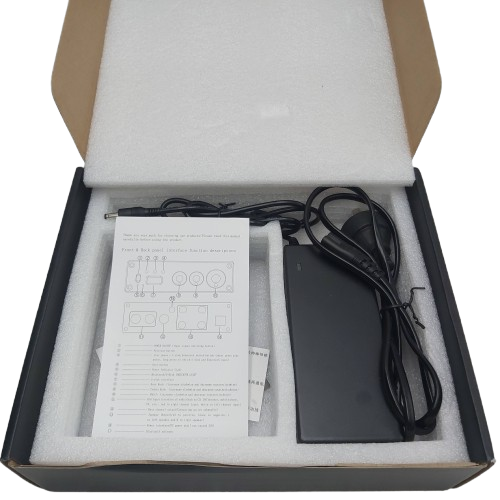

Packing List
1 * M1 PRO Power Amplifier
1 * 32V/5A Power Supply
1 * Manual
