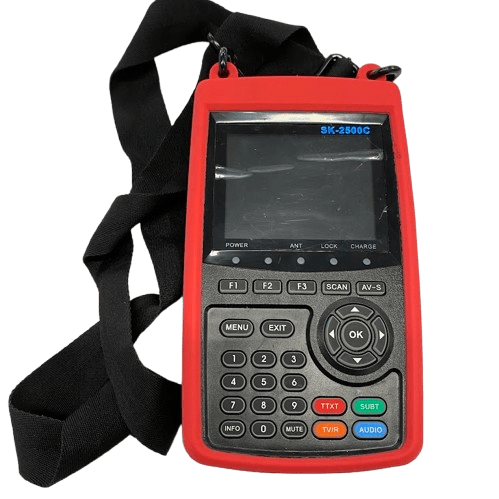

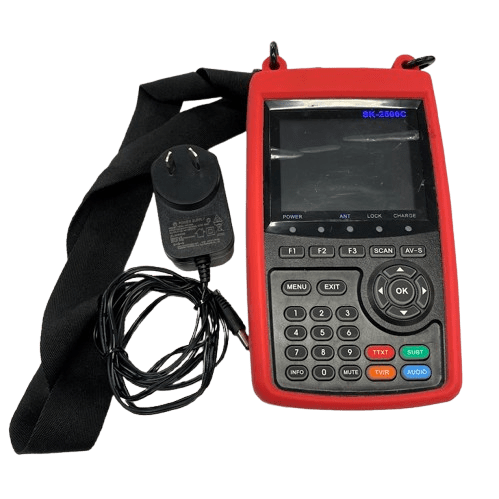

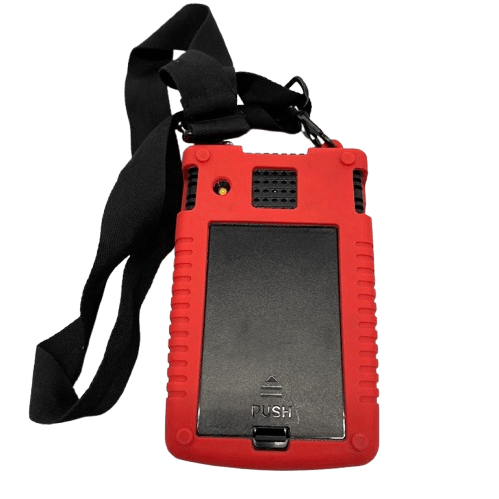

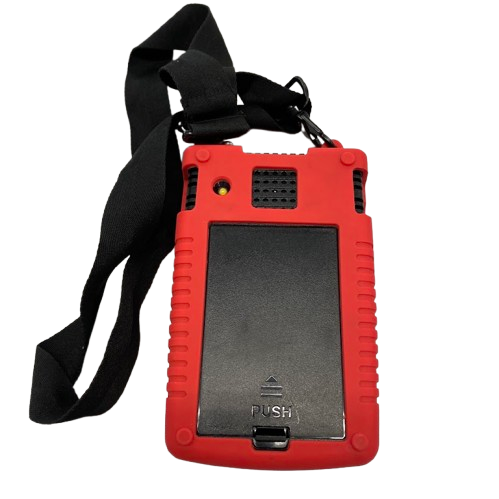

Satking SK-2500C Signal Meter is high definition terrestrial TV meter specially designed for TV installer and electricians . Being MPEG 4 the unit can display a live TV of both SD and HD channels. The unit is easy to use and had all the important measurements built in like MER.

This unit replaces the very popular SatKing SK-2000A meter that there was more than 5000 units sold around Australia. The unit has a built in high power 3000mAH battery that you can do plenty of jobs without re-charging. Unlike many other mid level priced meters on the market this meter you can actually view Digital TV channels many other mid level cost meters you can’t actually view or listen to TV channels.

The unit also can be used for alignment of CCTV camera’s via the av input and also the unit has HDMI output for testing cable runs to your TV.

The Satking SK-2500C Signal Meter has also recently been updated from the SK-2500 to the SK-2500B, adding DVB-C function and HDMI input.

Features:

• MPEG2/MPEG4
• Live TV
• 3.5” Colour LCD Screen
• MER Readout
• Built in Speaker
• Built in Light
• Signal buzzer
• 3000MAh Lithium Ion Battery
• HDMI Input/Output
• AV Input/Output
• Media Playback Via the USB
• Software Upgrade via USB
• Carrier Too Noise Display
• Compact Size
• Electronic Program Guide
• Multi Channel Signal Level Display Mode
• BER Display
• Spectrum Analyser Function
• Mast Head Amp power output
• Keyboard back light
• DVB-C Tuner

DVBT Technical Specifications:

• Signal Level: 25 to -65dBm
• Channel: 6-69
• Freq Range: 177.500-816.500MHz
• Antenna Input: 1x F-Type
• Voltage Input: 12VDC
• Video Encoding: MPEG2/MPEG4
• Audio: MPEG Layer I/II , MPEG4 HE-AAC


  Connections

  • 1x F-Female Input
  • 1x USB 2.0
  • 1x HDMI Output
  • 1x HDMI Input
  • 1x 3.5mm AV Input
  • 1x 3.5mm AV Output
  • 1x 2.1mm DC Jack
